Argon IB M.2 Case

Yam khoom: Raspberry Pi 4B aluminium alloy hlau lub thawv
Qauv: M.2 Case
Nqe Nqe: $50-$200

Xa kev nug

Product Details of Argon IB M.2 Case

Cov Khoom Muag Khoom
Khoom Parameters
Ntau Yam Khoom
FAQ
Kev nug

Cov Khoom Muag Khoom

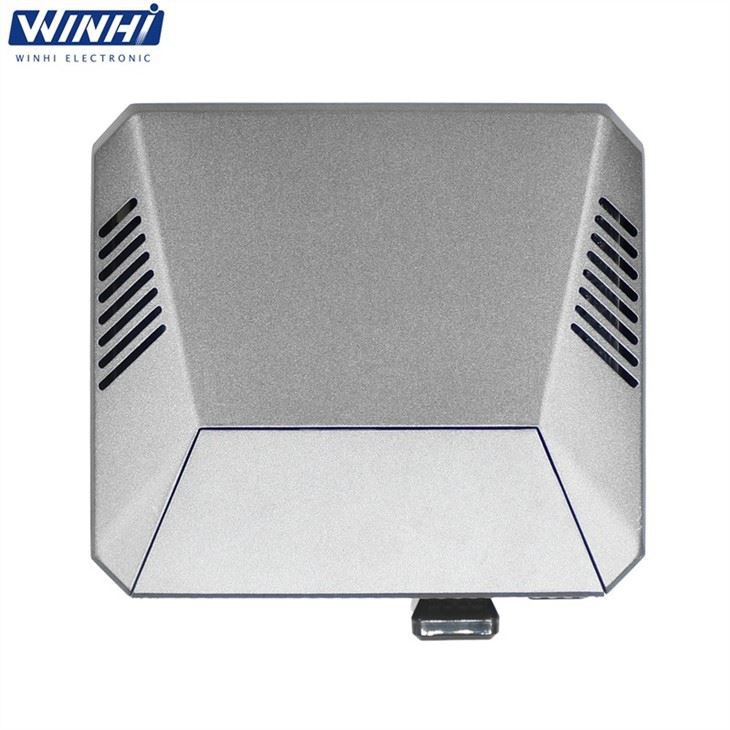

Raspberry Pi 4B aluminium alloy hlau lub thawv

Ua los ntawm aluminium alloy, polished nrog niaj hnub qhov chaw grey

Zoo heev emission thiab tshav kub dissipation tsim

Lub thermal conductivity kem ntawm lub cuab yeej tuaj yeem hloov cov cua sov ntawm lub mainboard mus rau lub plhaub kom ceev cov cua kub dissipation, thiab ntau qhov cua qhov cua kom ceev cov cua sov dissipation.

Siv nrog cov kiv cua txias kom ua kom txias zoo dua.

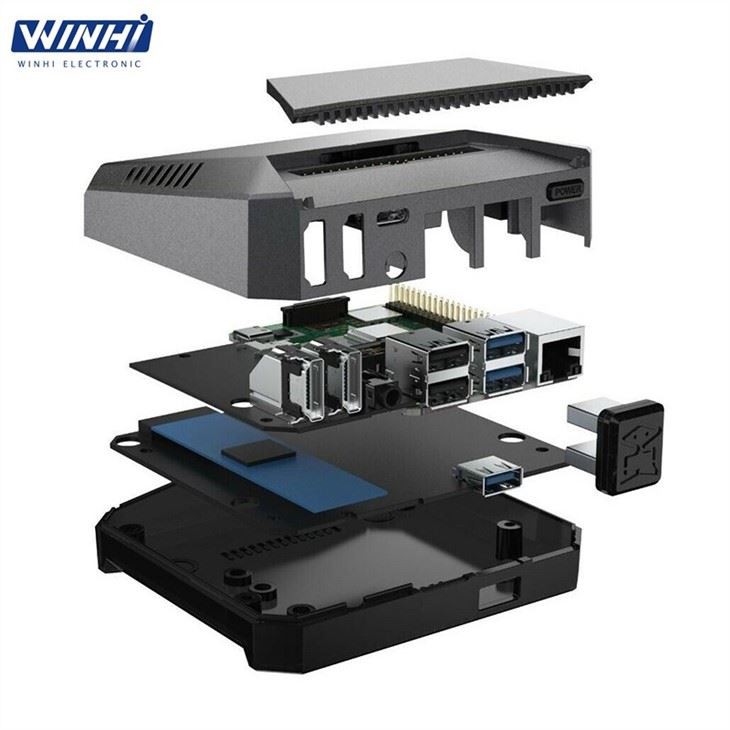

Tshwj xeeb expansion slots rau M.2 interface

Nws tuaj yeem nthuav dav los ntawm M.2 interface. Tom qab txhim kho M.2 expansion module, txuas nrog USB connector.

(Cov khoom no tsis suav nrog M.2 SSD thiab Raspberry Pi, thov yuav lawv cais yog tias koj xav tau.)

2.1_

Intimate tsim nyob rau hauv qab

Qhov chaw tsim lub qhov yog qhov ntse, qhib meej kom paub meej tias txhua qhov kev sib tshuam tuaj yeem ua tau zoo nrog lub motherboard.

Kev sib dhos yooj yim, tsis muaj kev sib txuas yooj yim.

Muaj ob lub pinboards, kev sib dhos yooj yim tuaj yeem tsim, tsis muaj kev sib txuas tsis zoo, tsis txhob txhawj txog kev xaim tsis raug, ruaj khov thiab nyab xeeb dua.

Kev ua tau zoo-raws li SSD firmware versions thiab system hardware thiab configuration tej zaum yuav txawv.

Kev sau ntawv tsis tu ncua tau ntsuas raws li TurboWrite thev naus laus zis.

Kev ntsuas kev ua haujlwm tsis tu ncua yog raws li CrystalDiskMARK v.5.0.2 thiab IOmeter 1.1.0.

Hard Disk Parameters

Product Overview

PI4 pib los ntawm daim npav SD los ntawm lub neej ntawd, uas tsis nrawm li SSD. Raspberry Pi tam sim no tuaj yeem pib los ntawm USB, txhim kho qhov nrawm ntawm kev nyeem ntawv thiab sau ntawv.

PI4-CASE-ARGON-ONE-M.2 hlau plhaub, M.2 chaw nres nkoj tuaj yeem txuas ntxiv los ntawm qhov chaw nres nkoj USB, thiab siv lub SSD sab nraud uas yog thawj qhov chaw cia tsav tuaj yeem ua kom nrawm heev.

Yuav siv SSD pib los ntawm USB li cas?

1. Load SSD rau hauv expansion board, raws li cov duab hauv qab no qhia

Case:

1 x Argon ONE M.2 Case

1 x Phau ntawv qhia

1 x Video / Audio PCB Extender

1 x GPIO-Ntxuam PCB HAT

1 x Silicone Thermal Pads

(Tsis suav nrog Raspberry Pi board !!!)

Case nrog Fais Fab:

1 x Argon ONE M.2 Case

1 x Phau ntawv qhia

1 x Video / Audio PCB Extender

1 x GPIO-Ntxuam PCB HAT

1 x Silicone Thermal Pads

1 x 5V 3A fais fab mov

(Tsis suav nrog Raspberry Pi board !!!)

Case nrog Power Supply thiab Memory Card:

1 x Argon ONE M.2 Case

1 x Phau ntawv qhia

1 x Video / Audio PCB Extender

1 x GPIO-Ntxuam PCB HAT

1 x Silicon Thermal Pads

1 x 5V 3A fais fab mov

1 x Card (16GB / 32GB / 64GB / 128GB Option)

(Tsis suav nrog Raspberry Pi board !!!)

Case nrog 128G SSD:

1 x Argon ONE M.2 Case

1 x Phau ntawv qhia

1 x Video / Audio PCB Extender

1 x GPIO-Ntxuam PCB HAT

1 x Silicon Thermal Pads

1 x 128GB M.2 Sata SSD

1 x Screws Tsav

(tsis suav Raspberry Pi)

Case nrog 512G SSD:

1 x Argon ONE M.2 Case

1 x Phau ntawv qhia

1 x Video / Audio PCB Extender

1 x GPIO-Ntxuam PCB HAT

1 x Silicon Thermal Pads

1 x 512GB M.2 Sata SSD

1 x Screws Tsav

(tsis suav Raspberry Pi)
