Tsev/Cov khoom/ Advertising Screen / Network Network Ntsuam Xyuas

digital signage screens

Yam khoom: 17inch Phab Ntsa Mount HD Network digital signage cov ntxaij vab tshaus
Qauv: PT170A-NW
Nqe: $150-$240
LCD Loj: 17 nti 4:3
Kev daws teeb meem: 1024 * 768
OS: Android
CMS software rau kev tswj chaw taws teeb thiab cov ntsiab lus hloov tshiab
Yeeb yaj duab seamless voj, kab rov tav, ntsug thiab phua npo zaub
Daim ntawv pov thawj: FCC, CE, ROHS
Customized service: LOGO, xim, tsos, muaj nuj nqi
Warranty: 1 ~ 3 Xyoos

Xa kev nug

Product Details of digital signage screens

Cov Khoom Muag Khoom
Khoom Parameters
Ntau Yam Khoom
FAQ
Kev nug

Cov Khoom Muag Khoom

PT170AD-Network_01 PT170AD-Network_02 PT170AD-Network_03 PT170AD-Network_04 PT170AD-Network_05 PT170AD-Network_06

Khoom Parameters

CPU yog 4-core ARM Cortex-A7, Clocked 1.3GHz, Nco: 1GByte DDR3 1600MHz

Autoplay thiab voj ua si

17in digital signage cov ntxaij vab tshaus txhawb tiag 1080P HD txiav txim siab

17in digital signage screens txhawb Seamless Looping

Txhawb Rolling Caption thiab Split Screen

digital signage screens Txhawb nqa ob qho tib si kab rov tav thiab ntsug

Zaub hom: Yees duab thiab duab tuaj yeem tig 90 degree / 180 degree / 270 degree .

USB pib luam tawm cov ntsiab lus rau NAND FLASH 8G

Lub sijhawm hloov pauv hloov ua haujlwm, tuaj yeem pib qhib / tawm ntawm lub sijhawm tshwj xeeb

Network Publishing Management, lub software yog yooj yim thiab yooj yim rau kev khiav lag luam

Built-in WIFI module

Specifications

Zaub	LCD Loj	17inch digital signage npo

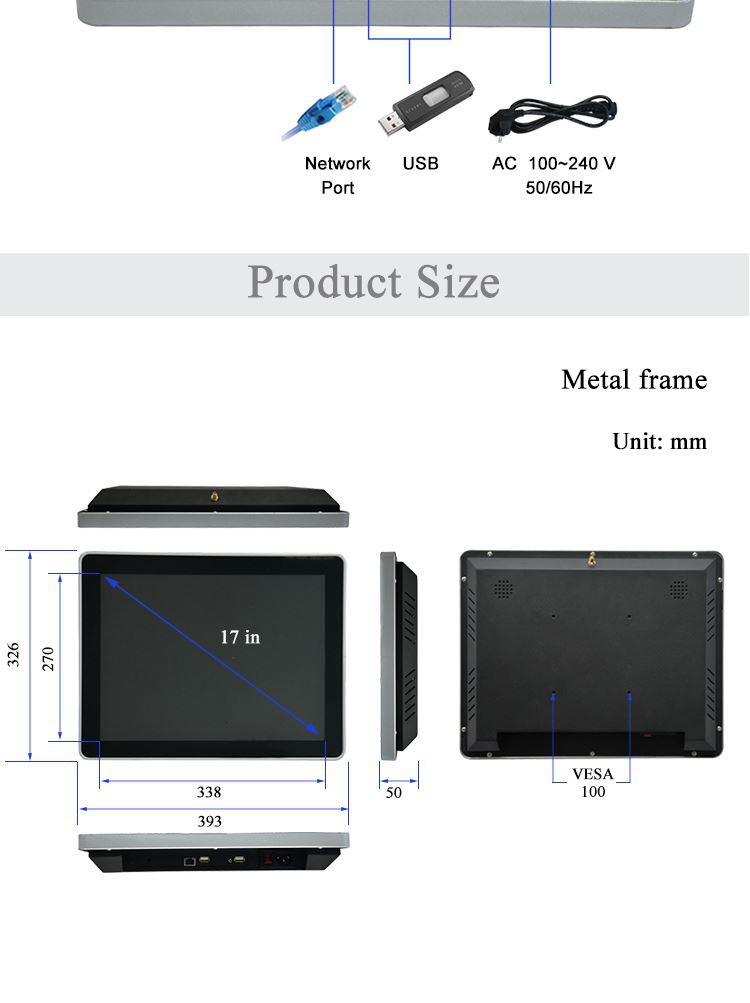

	Qhov chaw tso saib	338 x 270 mm
	Kev daws teeb meem	1024x768
	Luminance	250-300cd/㎡
	Saib lub kaum sab xis	U20 degree / D45 degree / L45 degree / R45 degree
	Qhov sib piv piv	800:1
	Zaub hom	4:3
	Teb Sijhawm	8ms ib
Txhawb hom ntawv	Video Format	MPEG2, AVI, MP4, DIV, TS, TP, TRP, MKV, MOV, DAT, ASF, WMV, RM, RMVB
	Duab hom	JPEG, PNG
	Suab paj nruag Format	MP3, MP2, WMA, WAV
Txhawb Video Decoding	Max daws teeb meem	1920x1080
	Max Xim Qhov tob	24bit ib
	Max Frame Rate	30 fm/s
	Max Code Stream	USB2.0 ntaus ntawv: 30Mb/s
Txhawb Suab Decoding	Tus nqi piv txwv	32kHz, 44.1kHz, 48kHz, 96kHz
Txhawb Suab Decoding	Tus nqi qis	32kbps rau 384kbps
I/O	Suab tso zis	Txuas rau 8Ω / 7W Speaker
	USB Hloov Rate	USB2.0, Max 480Mbps
	Network Interface	100 Mbps
	WIFI interface	100 Mbps
	Adapter	Tawm tswv yim: AC 100 ~ 240V 50 / 60Hz

Muag zoo tshaj plaws

Ntau yam khoom specifications

FAQ

Q: Wkoj yuav tsum yuav los ntawm peb, tsis yog los ntawm lwm tus neeg muag khoom?
A: Ningbo Winhi Electronic Co., Ltd., nyob hauv Ningbo, Suav. Peb cov khoom tseem ceeb yog digital signage screens, advertising media player, saib, customized audio-video khoom, thiab lwm yam peb muaj peb tus kheej tsim thiab R & D pab neeg, uas ua rau peb txhawb customized tsim.

Q: Digital signage CMS txhais li cas?
A: Digital signage CMS yog hais txog cov cim digital tswj hauv cov ntsiab lus tswj software. Lub software tshaj tawm cov lus xws li yeeb yaj kiab, duab, tshaj tawm, xov xwm, huab cua, ntawv qhia zaub mov, thiab ntau dua rau ib lossis ntau lub vijtsam.

Q: Kuv puas tuaj yeem tau txais qee qhov qauv?

A: Yog, paub meej, peb zoo siab los muab cov qauv rau koj kuaj, tab sis tus qauv tsis pub dawb.Thaum kom ntseeg tau tias cov khoom raug yuav raug thiab nyab xeeb, peb yuav muab kev sim online yog tias koj thov.

Q: Lub sijhawm xa khoom thiab lub sijhawm xa khoom ntawm koj lub tuam txhab yog dab tsi?

A: Lub sij hawm xa khoom / ntau lawm yog cuam tshuam ncaj qha los ntawm qty thiab cov qauv khoom uas koj xaiv. Thiab 3-7 hnub ua hauj lwm ntxiv rau booking lub hiav txwv xa khoom los yog dav hlau ya.

Q: Cov nqe lus them nqi twg koj txais?

A: Peb lees txais Paypal, T / T, Alibaba Trade Assurance, Western Union, Wechat, nyiaj ntsuab (RMB lossis USD) ...
